Vendor: Blitz Systems

STUDBITE Fire-Rated Trapeze Support

Trapeze Support Length FCS-TS150FR
Subtotal: $0.00

Pickup available at 8 Pavilion Place Usually ready in 24 hours

Share This Product
Product Overview
Product Overview
x

STUDBITE Fire-Rated Trapeze Support

The STUDBITE Suspension Support system now offers fully compliant Fire Rated cable support systems certified to AS/NZS 3013:2005 Appendix C Classification WS5X - 2 hour fire rating up to 1050°C.

Independent test results reveal STUDBITE Fire Rated Cable Support systems have a high suspension capacity of up to 50 KG/Lm for sizes of 150, 300, 450 & 600mm tray widths. They are also certified for seismic compliance.

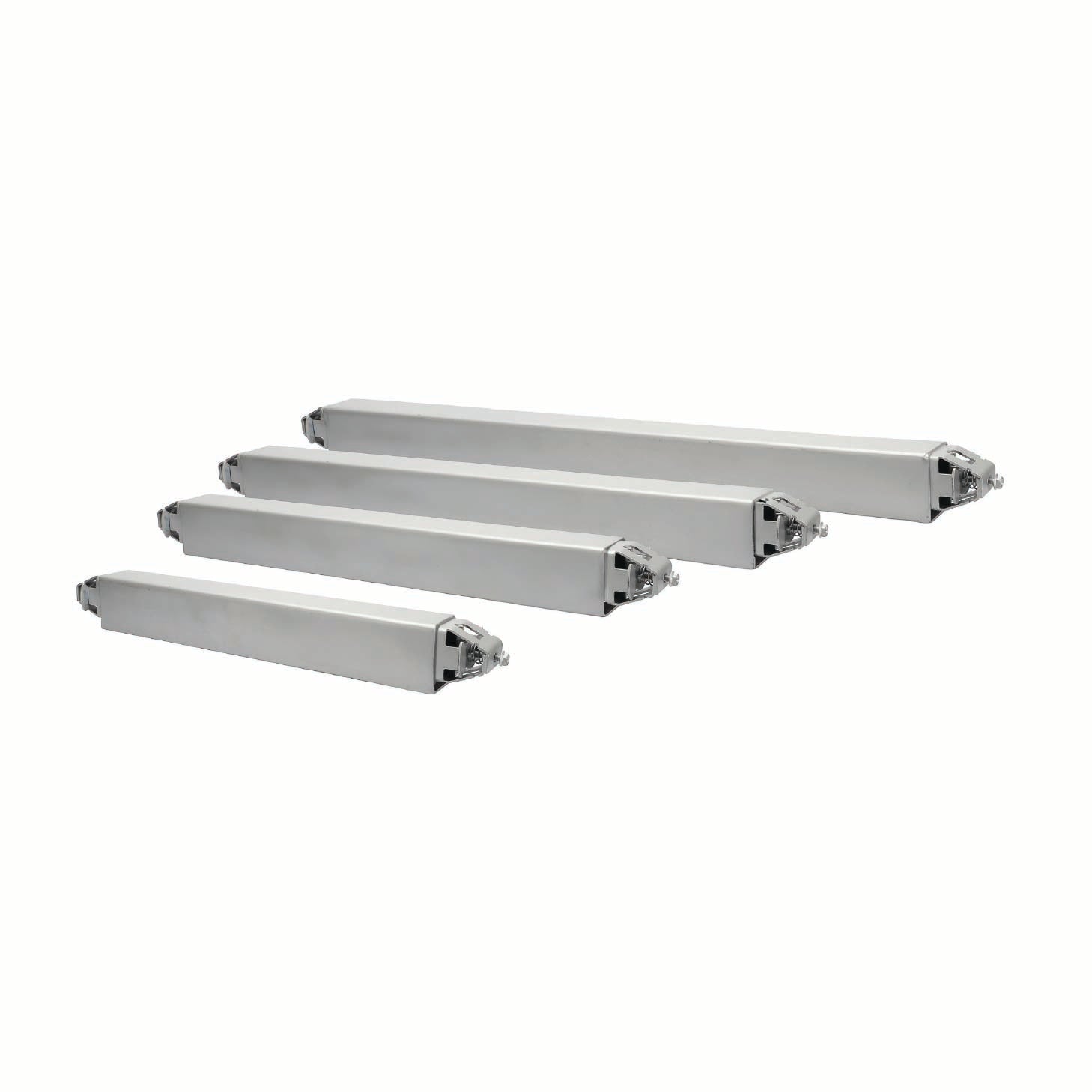

 SKU Suits Stud Centre OAL W H

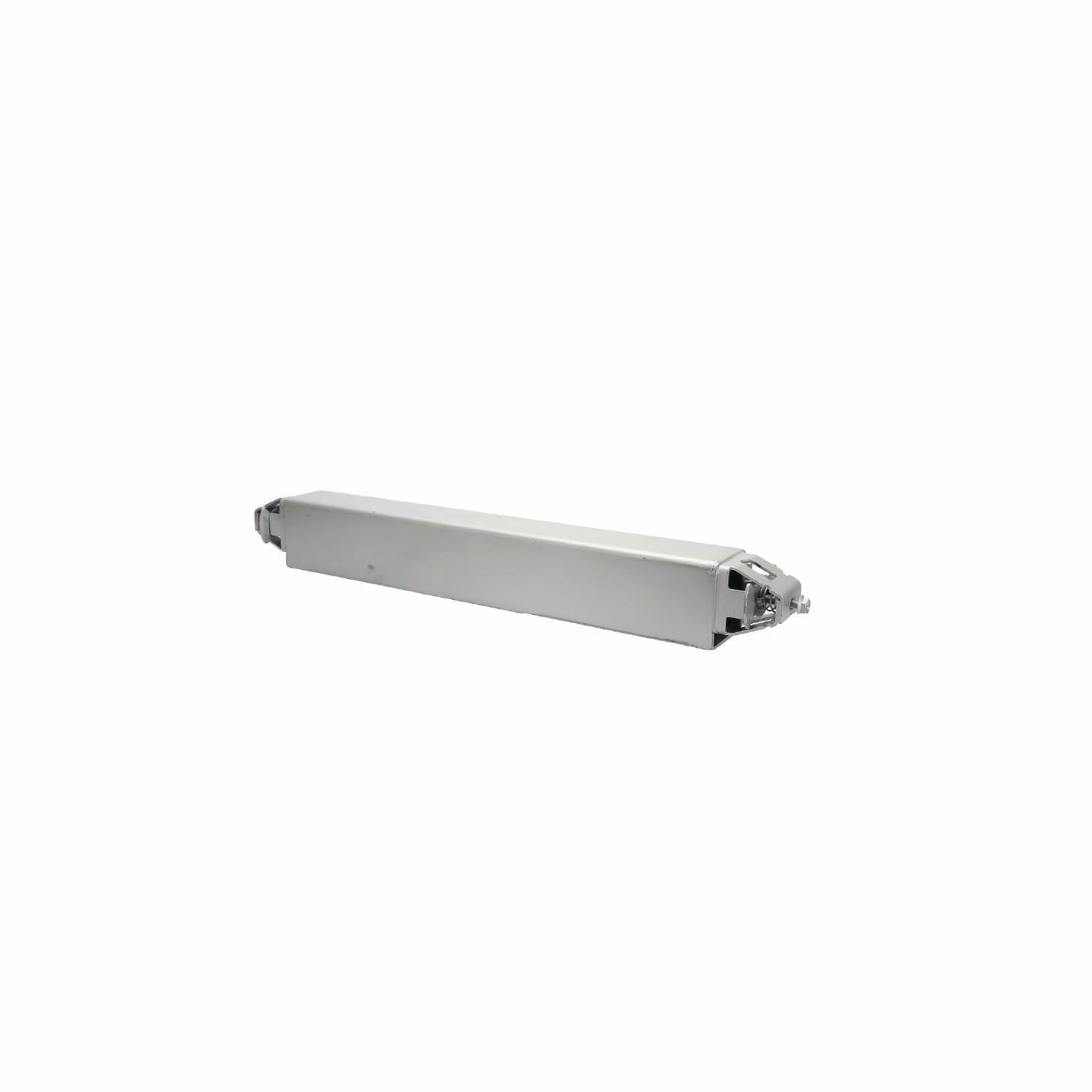

FCS-TS150FR 270mm 330mm 52mm 62mm
FCS-TS300FR 420mm 480mm 52mm 62mm

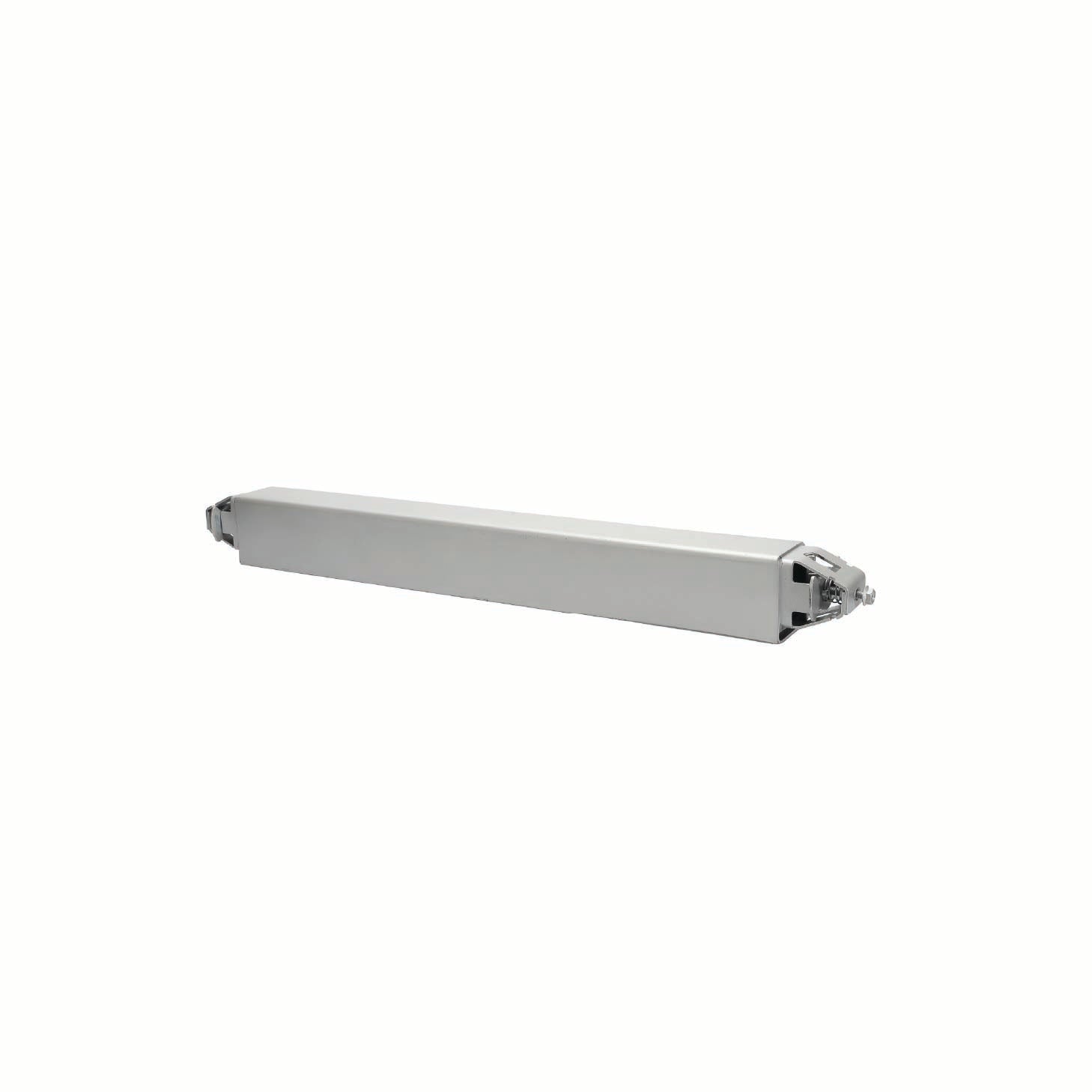

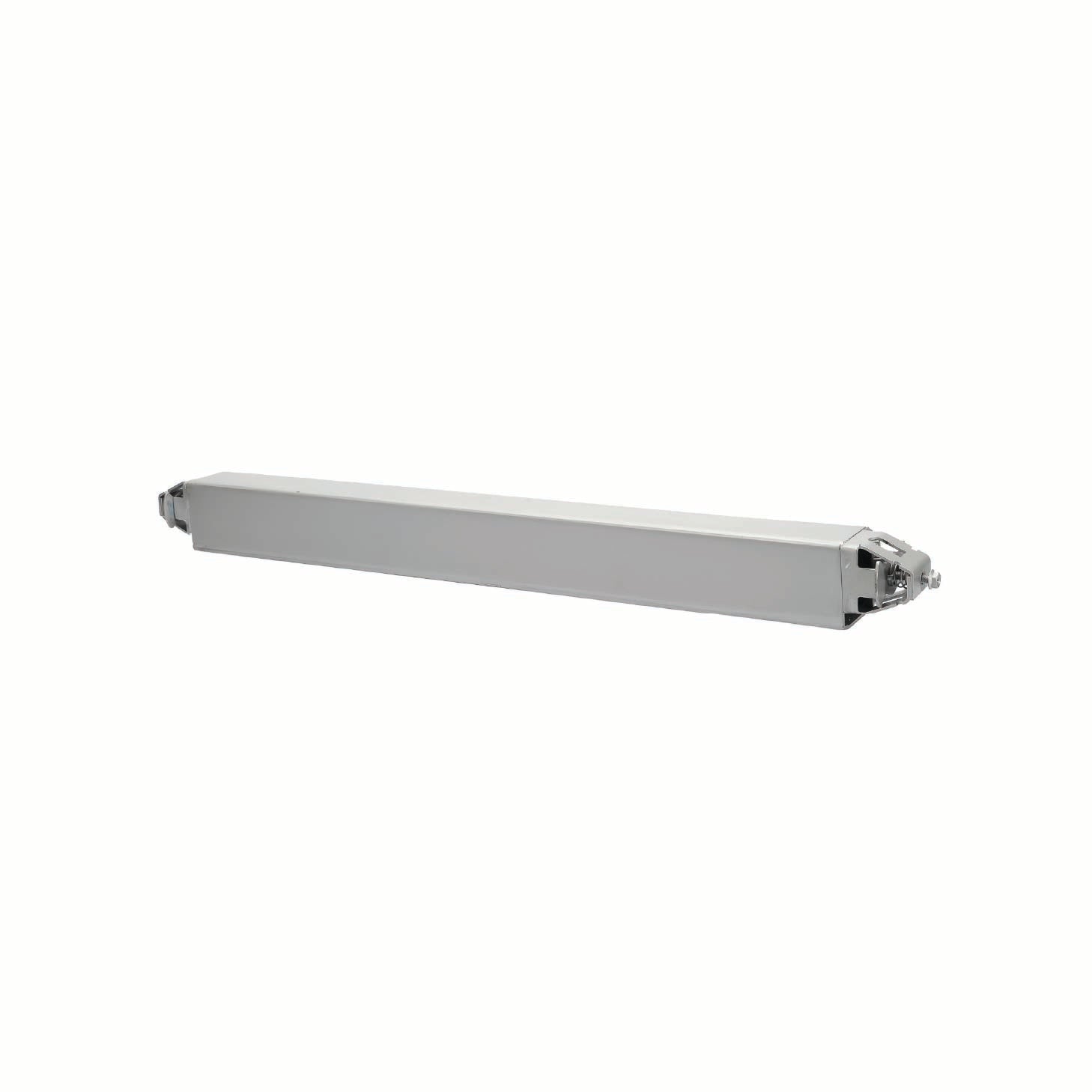

FCS-TS450FR 560mm 620mm 52mm 62mm

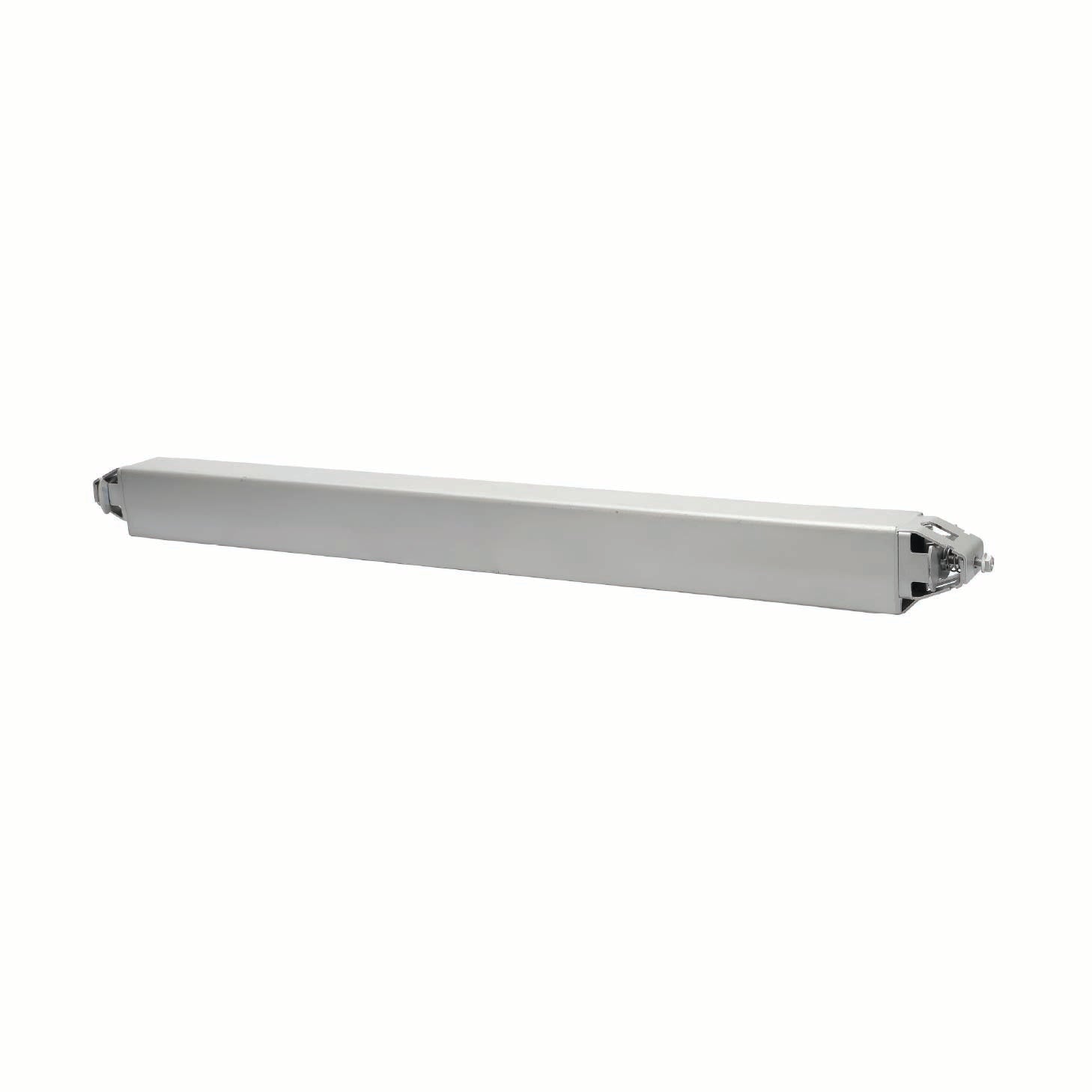

FCS-TS600FR 735mm 795mm 52mm 62mm



STUDBITE Fire-Rated Trapeze Support | Datasheet

STUDBITE Fire-Rated Trapeze Support | Installation Guide

Technical Specifications
Technical Specifications
x
SWL (1.0m support span): 50kg/m | SWL (1.2m support span): 25kg/m | SWL (1.5m support span): 11kg/m
