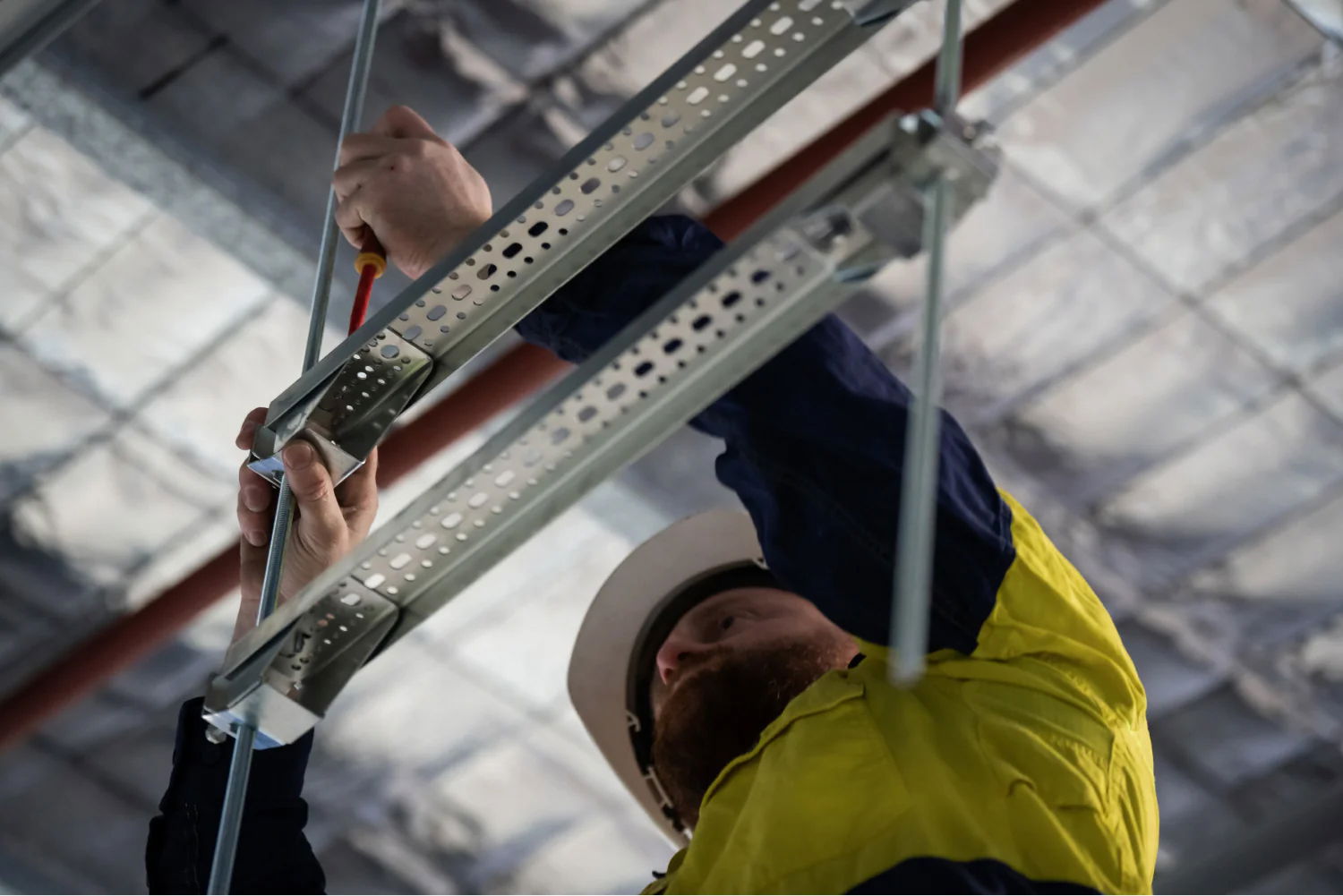

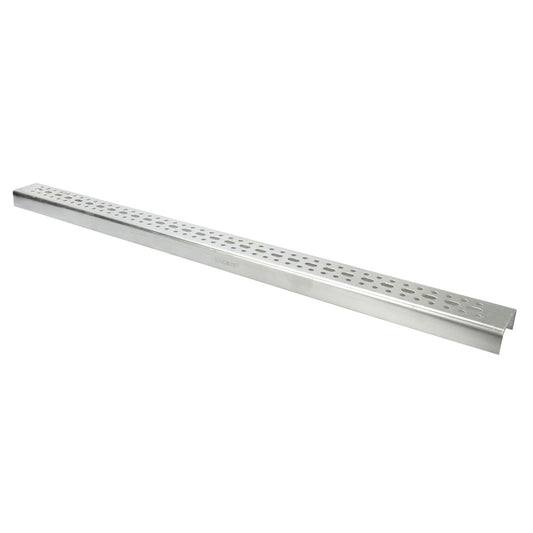

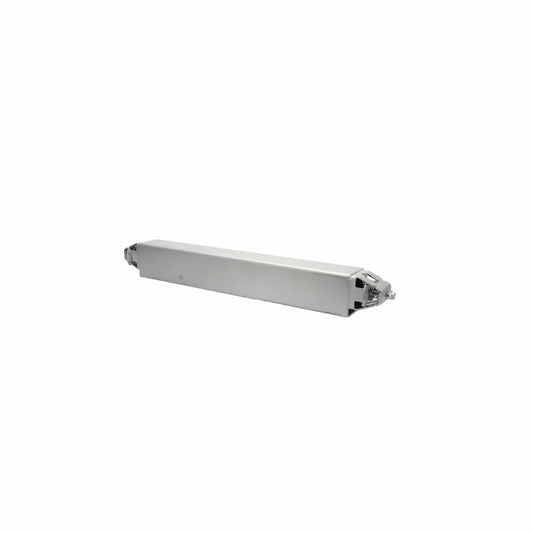

STUDBITE Cable Tray Trapeze Support

Not what you are looking for? Blitz Systems are here to help the construction industry save time and money

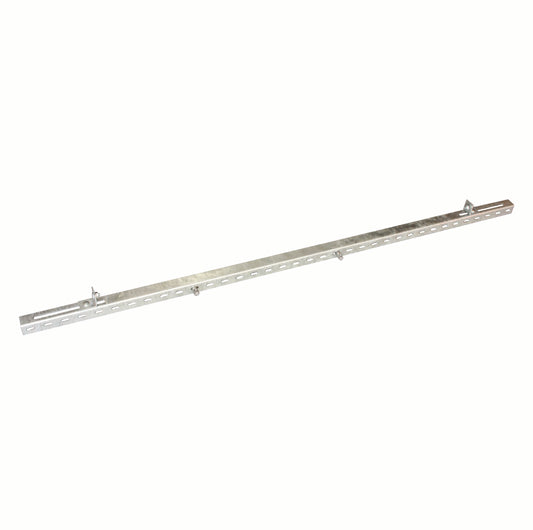

Drilling Templates for Studbite Cable Tray Trapeze Supports

To complement our STUDBITE Install-Ready Trapeze System, we offer Drilling Templates tailored for fast, precise, and efficient installation of your cable tray trapeze supports.


These templates are designed to streamline the set-out process, eliminating the need for constant measuring, marking and pre-drilling the fixing positions for STUDBITE Trapeze system rod hangers.

Available with hole centres to suit  150mm, 300mm, 450mm and 600mm cable tray widths.  Custom-made sizes are available upon request.

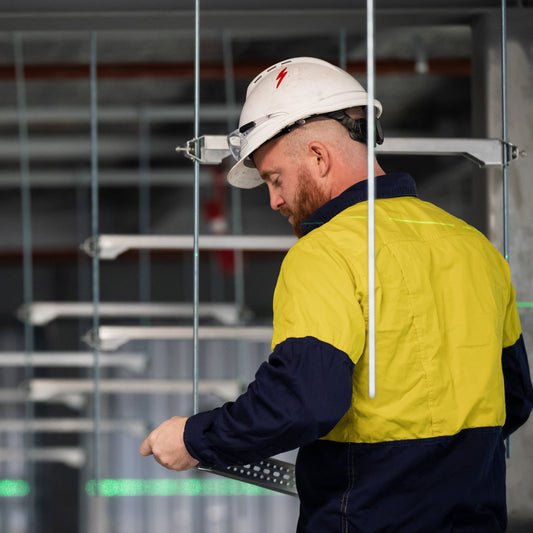

For fast install, simply line up the centre markings on the template with a laser line and your hole centre measurements are all square, lined up and the same every time - marking out the soffit for your rod hangers becomes very fast & efficient

Why Choose BLITZ?

At Blitz Systems, we're committed to transforming the way cable and HVAC support systems are installed onsite without hotworks. Our cutting-edge technologies are engineered to streamline installation procedures, saving you time, money, and frustration. Compared to traditional methods, Blitz Systems is 70% faster, empowering you to accomplish more in your day.
